NOMAD Redeployable CCTV Systems

RDC

Click any image to enlarge. Open specs to view details.

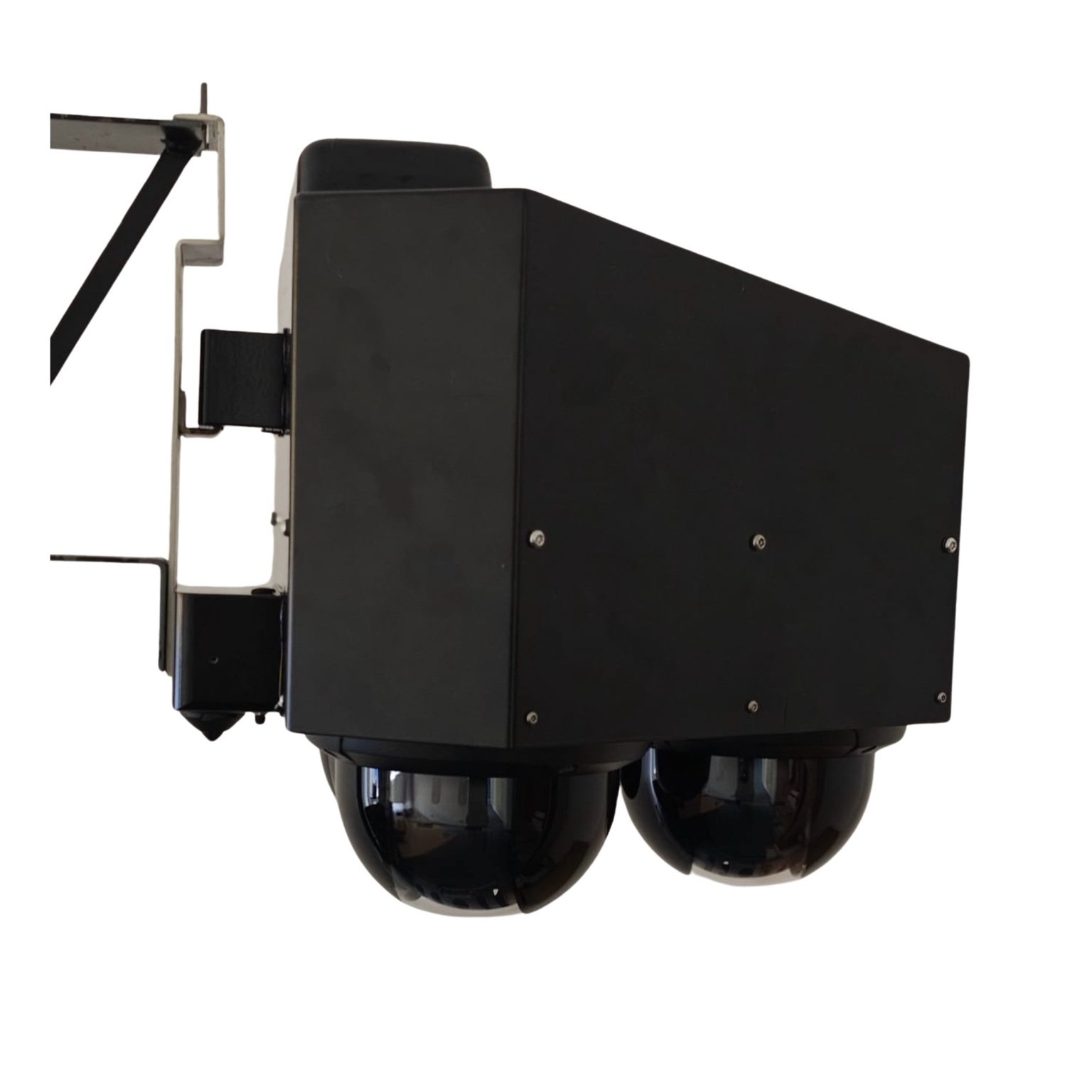

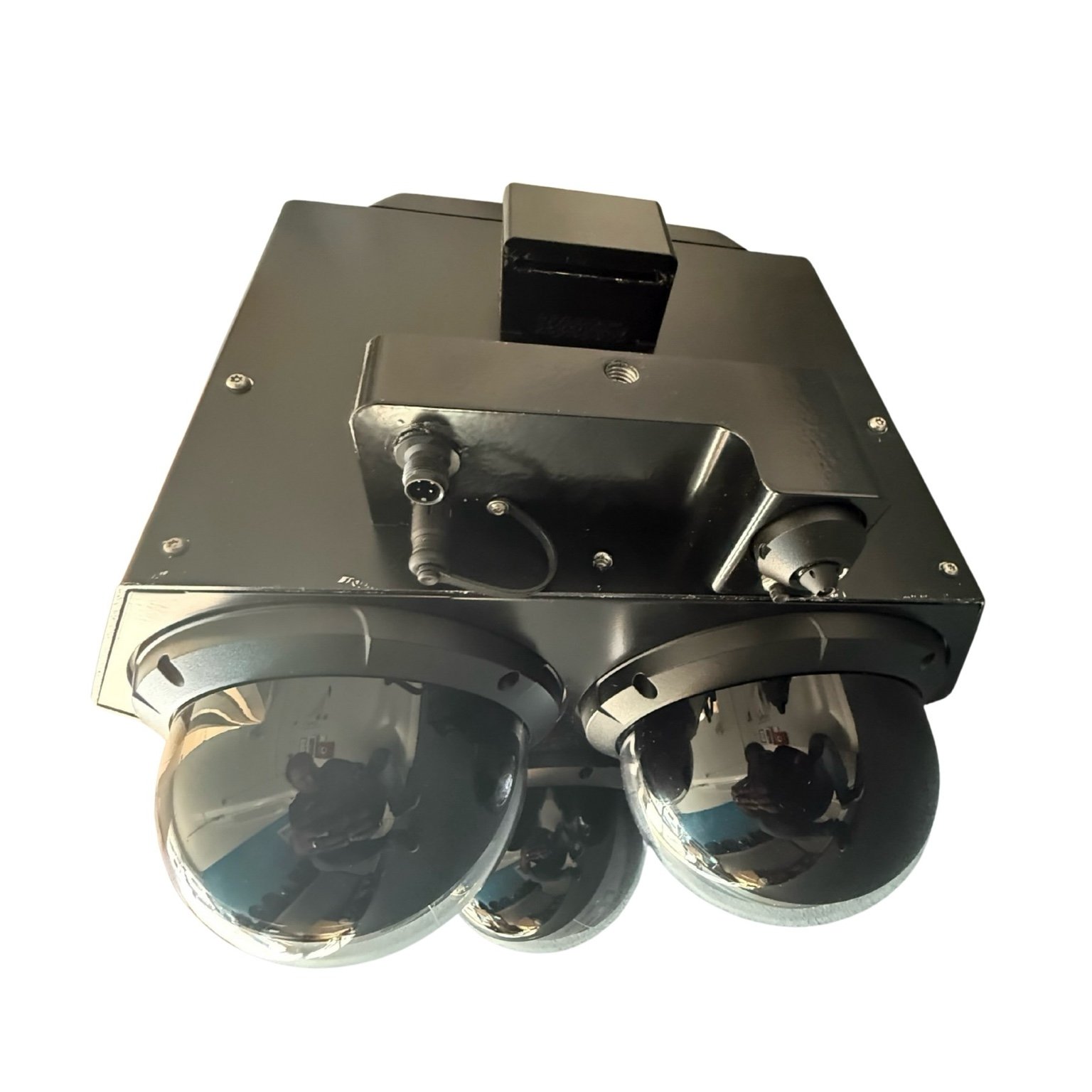

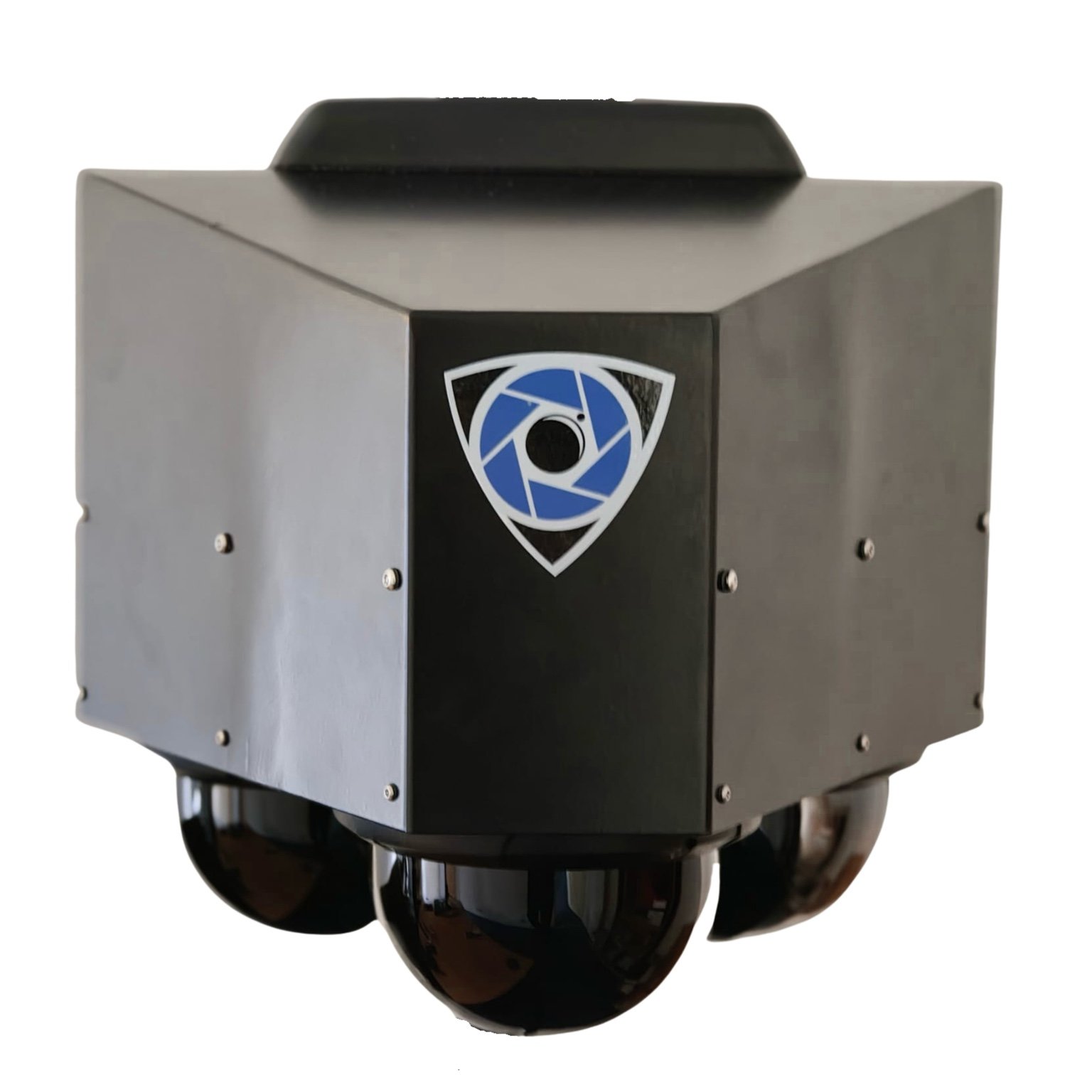

NOMAD Multicam redeployable CCTV camera — council surveillance, fly-tipping prevention

ALL NEW NOMAD Multicam

View specifications

Dimensions: H370mm × W340mm × D260mm
Weight: 10Kg
Windage: < 0.09m²
Tour Function: Yes
Zoom: 25:1 Optical Plus
Minimum Illumination: 0.00 Lux
Day/Night: Auto switching using ICR
Resolution: 2560 × 1440 (4MP)
Power Consumption: 56W peak / 36W cont @240V
Downward Camera: Wide Angle Bullet (2560p)
Storage: 6TB or 8TB surveillance grade
Recording Rate: 30 fps
Privacy Masking: Yes
Compression: H.265
Network Encryption: VPN
Disk Encryption: 256‑bit AES
Downloads: AVI, ASF, MP4, Original

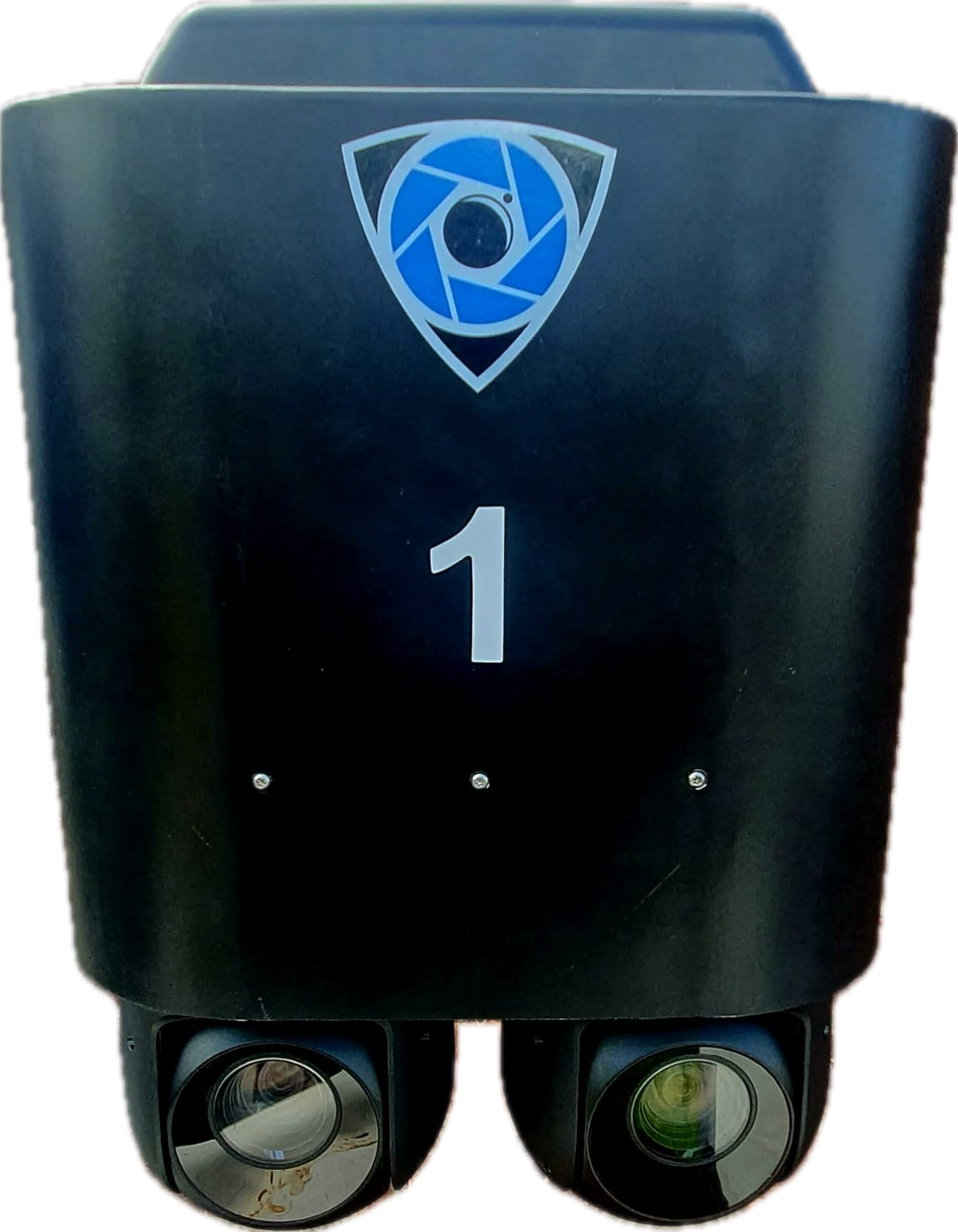

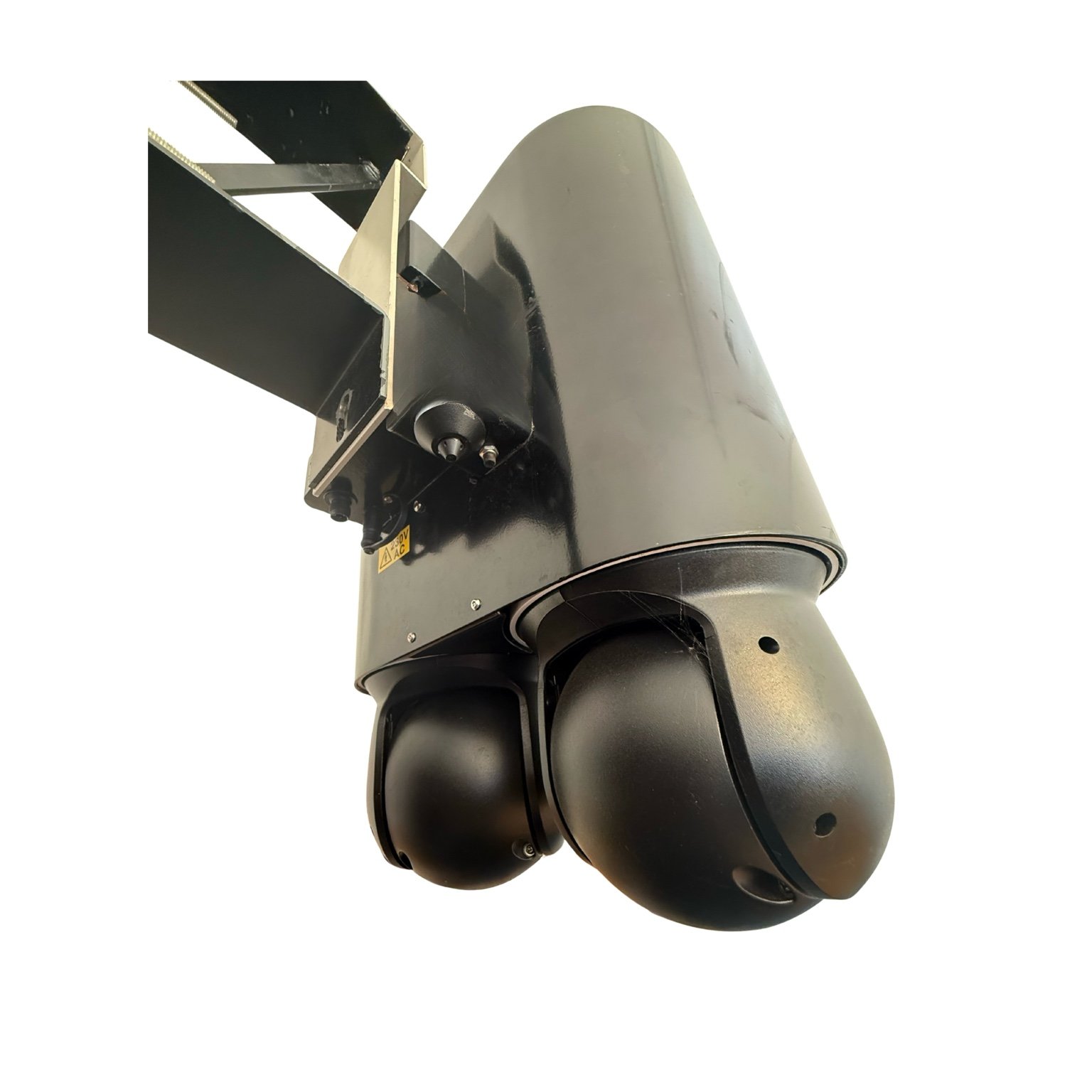

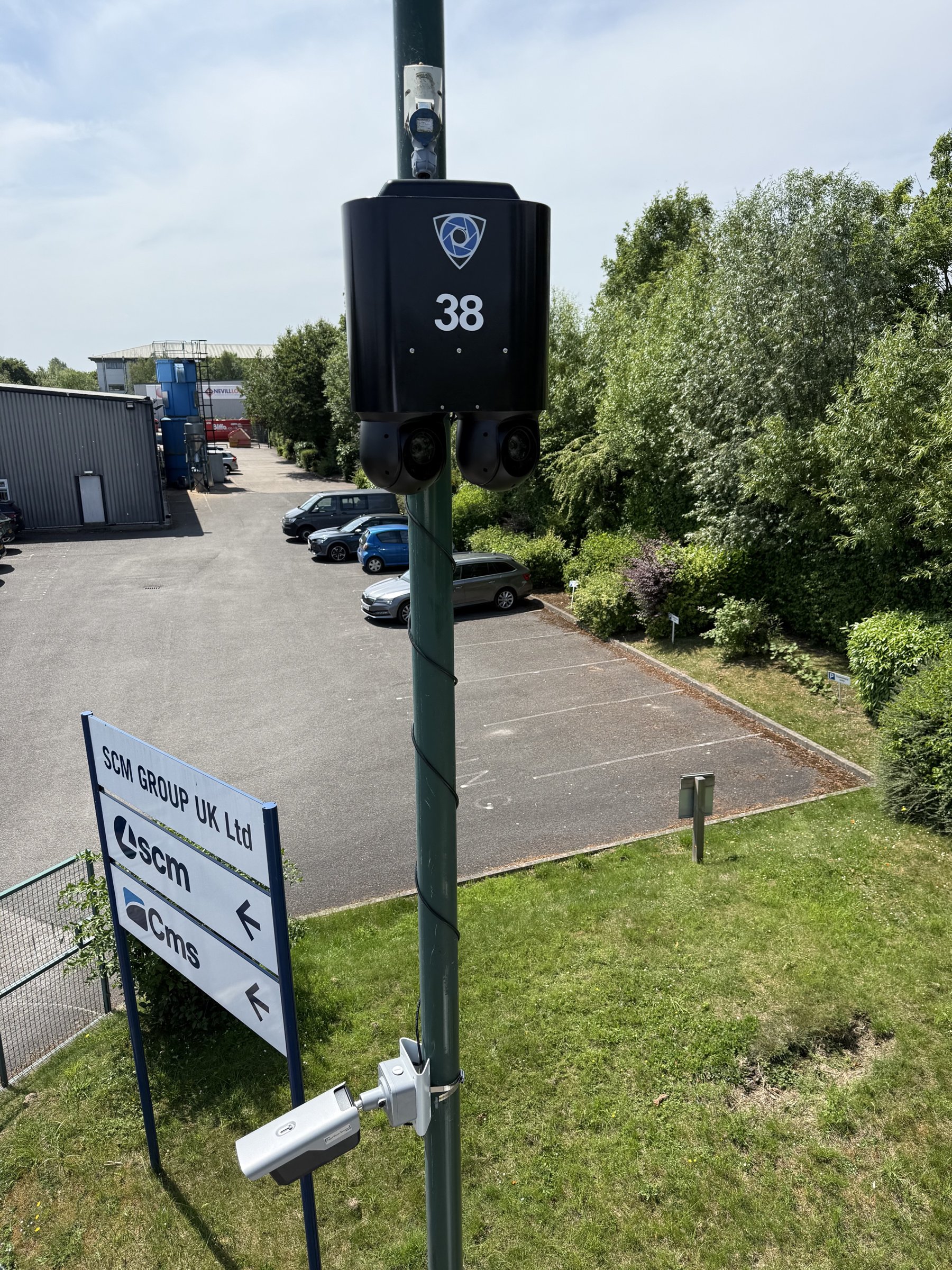

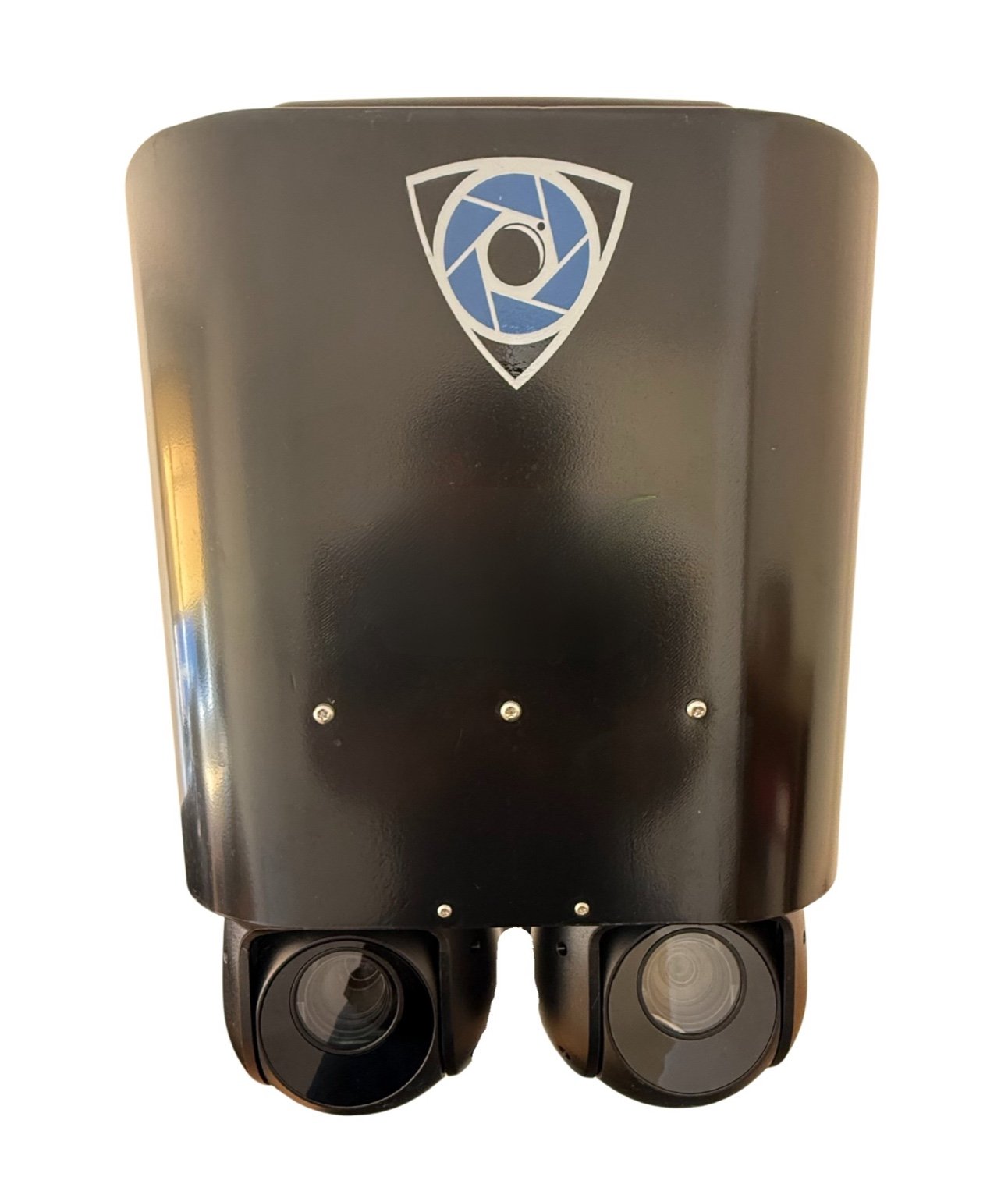

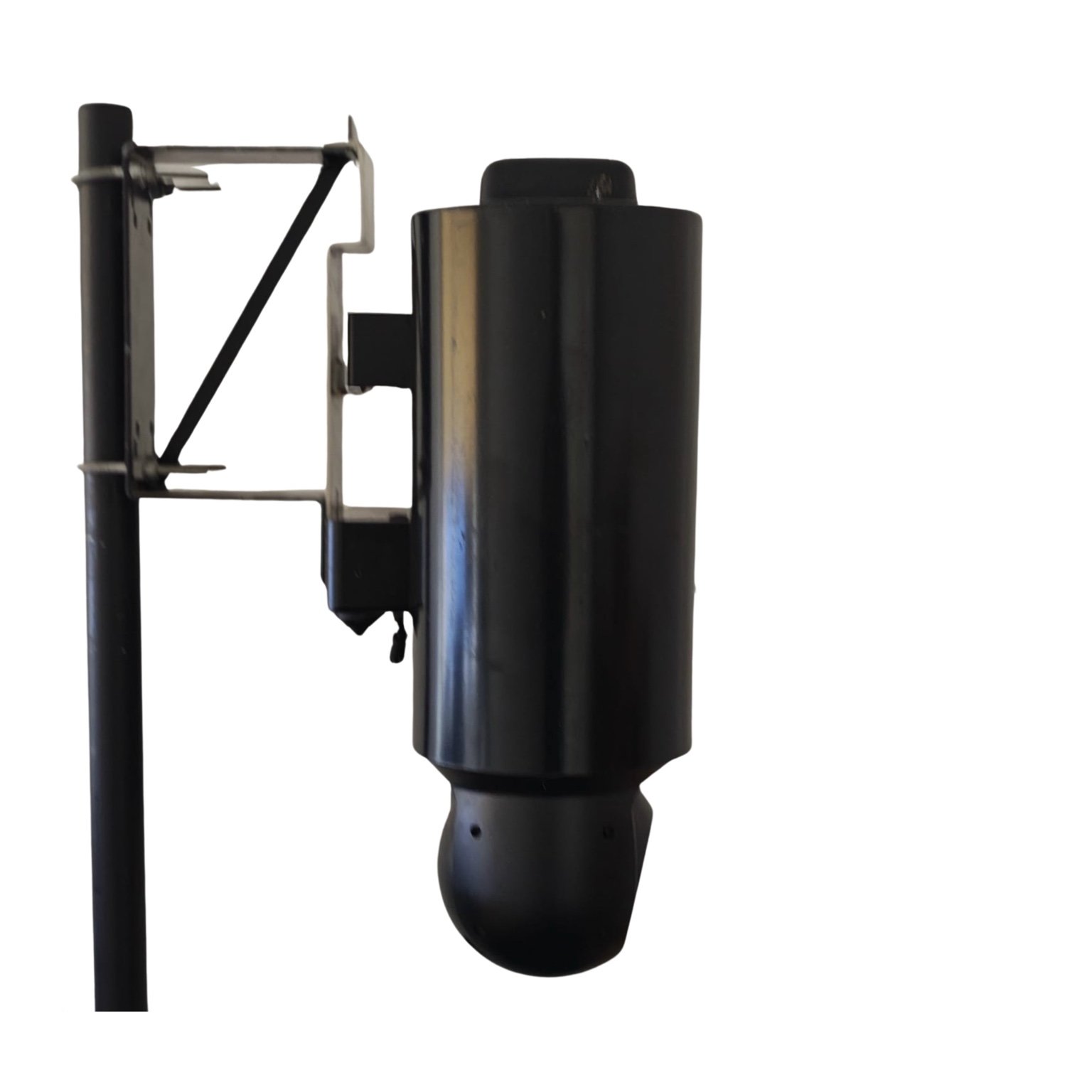

NOMAD Twin redeployable CCTV camera — RDC for councils and police

ALL NEW NOMAD Twin

View specifications

Dimensions: H470mm × W375mm × D220mm
Weight: 8.5Kg
Windage: < 0.09m²
Tour Function: Yes
Zoom: 25:1 Optical Plus
Minimum Illumination: 0.00 Lux
Day/Night: Auto switching using ICR
Resolution: 2560 × 1440 (4MP)
Power Consumption: 56W peak / 36W cont @240V
Downward Camera: Wide Angle Bullet (2560p)
Storage: 6TB or 8TB surveillance grade
Recording Rate: 30 fps
Privacy Masking: Yes
Compression: H.265
Network Encryption: VPN
Disk Encryption: 256‑bit AES
Downloads: AVI, ASF, MP4, Original

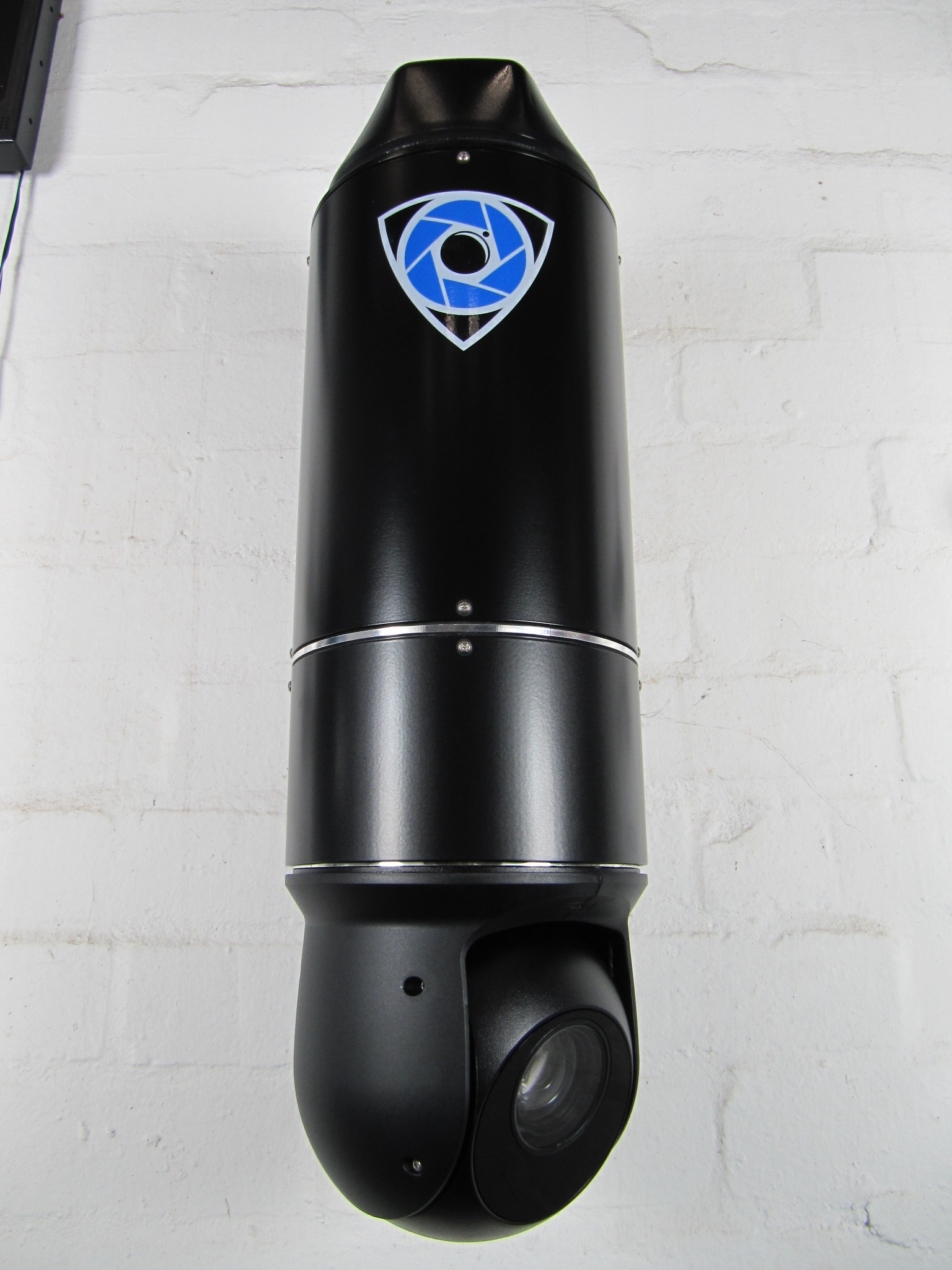

NOMAD Mini IR redeployable CCTV — council CCTV for ASB and RDC

NOMAD Mini IR

View specifications

Dimensions: H450mm × W155mm × D190mm
Weight: 5Kg
Windage: < 0.075m²
Tour Function: Yes
Zoom: 25:1 Optical Plus
Minimum Illumination: 0.00 Lux
Day/Night: Auto switching using ICR
Resolution: 2560 × 1440 (4MP)
Power Consumption: 35W peak / 29W cont @240V
Downward Camera: Wide Angle Bullet (2560p)
Storage: 6TB or 8TB surveillance grade
Recording Rate: 30 fps
Privacy Masking: Yes
Compression: H.265
Network Encryption: VPN
Disk Encryption: 256‑bit AES
Downloads: AVI, ASF, MP4, Original

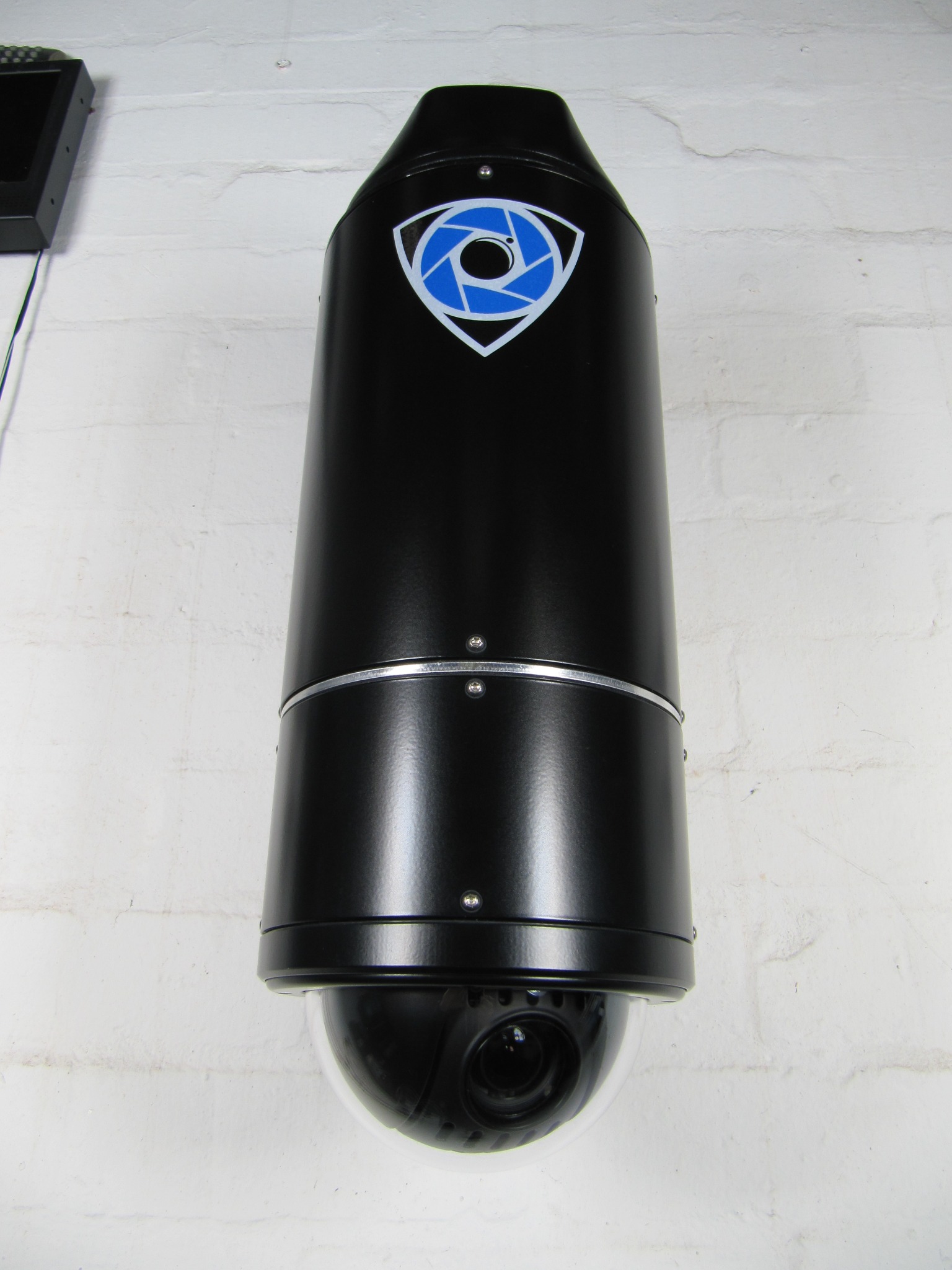

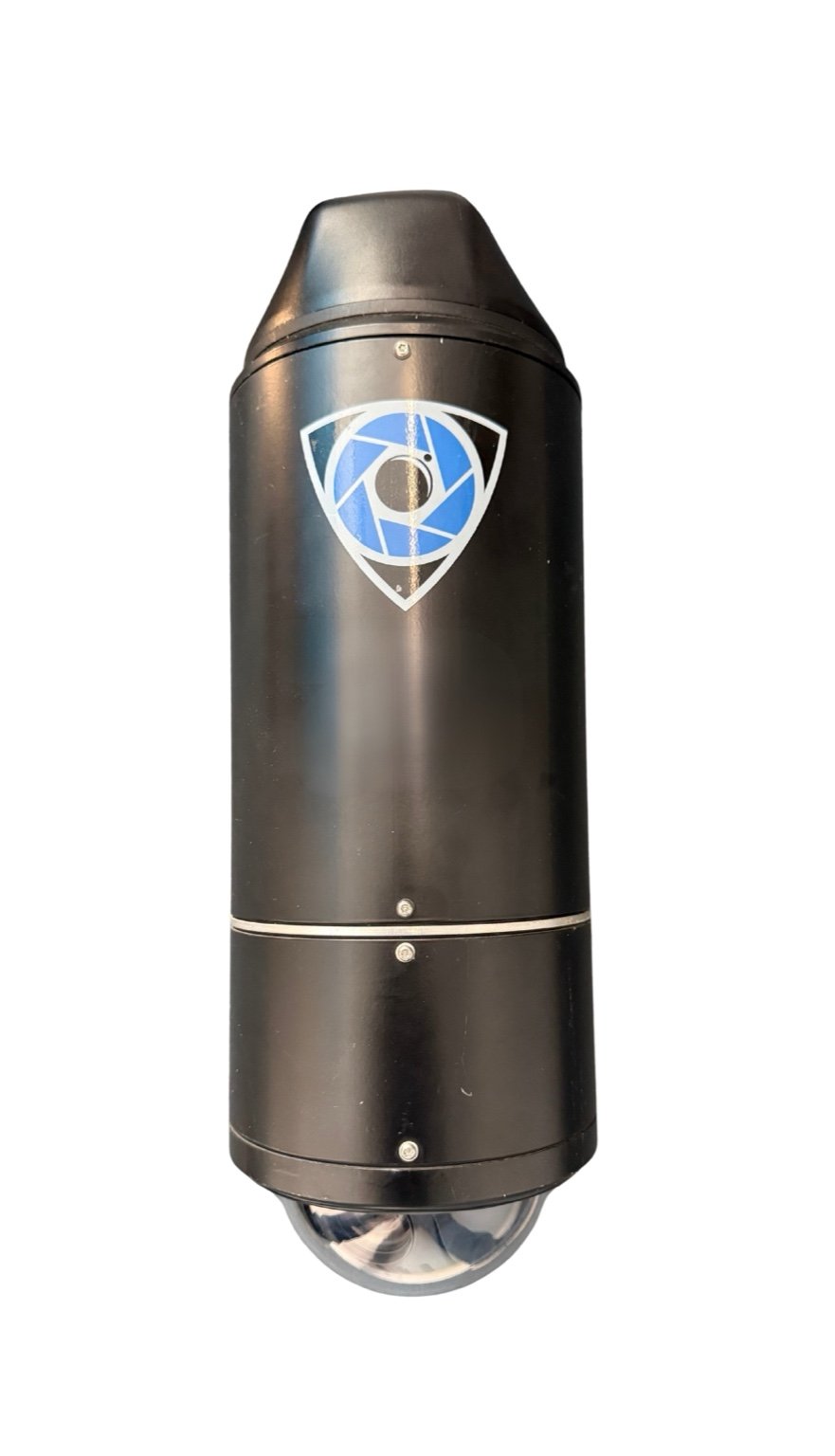

NOMAD Mini redeployable CCTV — rapid deployment camera for councils

NOMAD Mini

View specifications

Dimensions: H450mm × W155mm × D190mm
Weight: 4Kg
Windage: < 0.075m²
Tour Function: Yes
Zoom: 25:1 Optical Plus
Minimum Illumination: 0.00 Lux
Day/Night: Auto switching using ICR
Resolution: 2560 × 1440 (4MP)
Power Consumption: 35W peak / 29W cont @240V
Downward Camera: Wide Angle Bullet (2560p)
Storage: 4TB or 6TB surveillance grade
Recording Rate: 30 fps
Privacy Masking: Yes
Compression: H.265
Network Encryption: VPN
Disk Encryption: 256‑bit AES
Downloads: AVI, ASF, MP4, Original

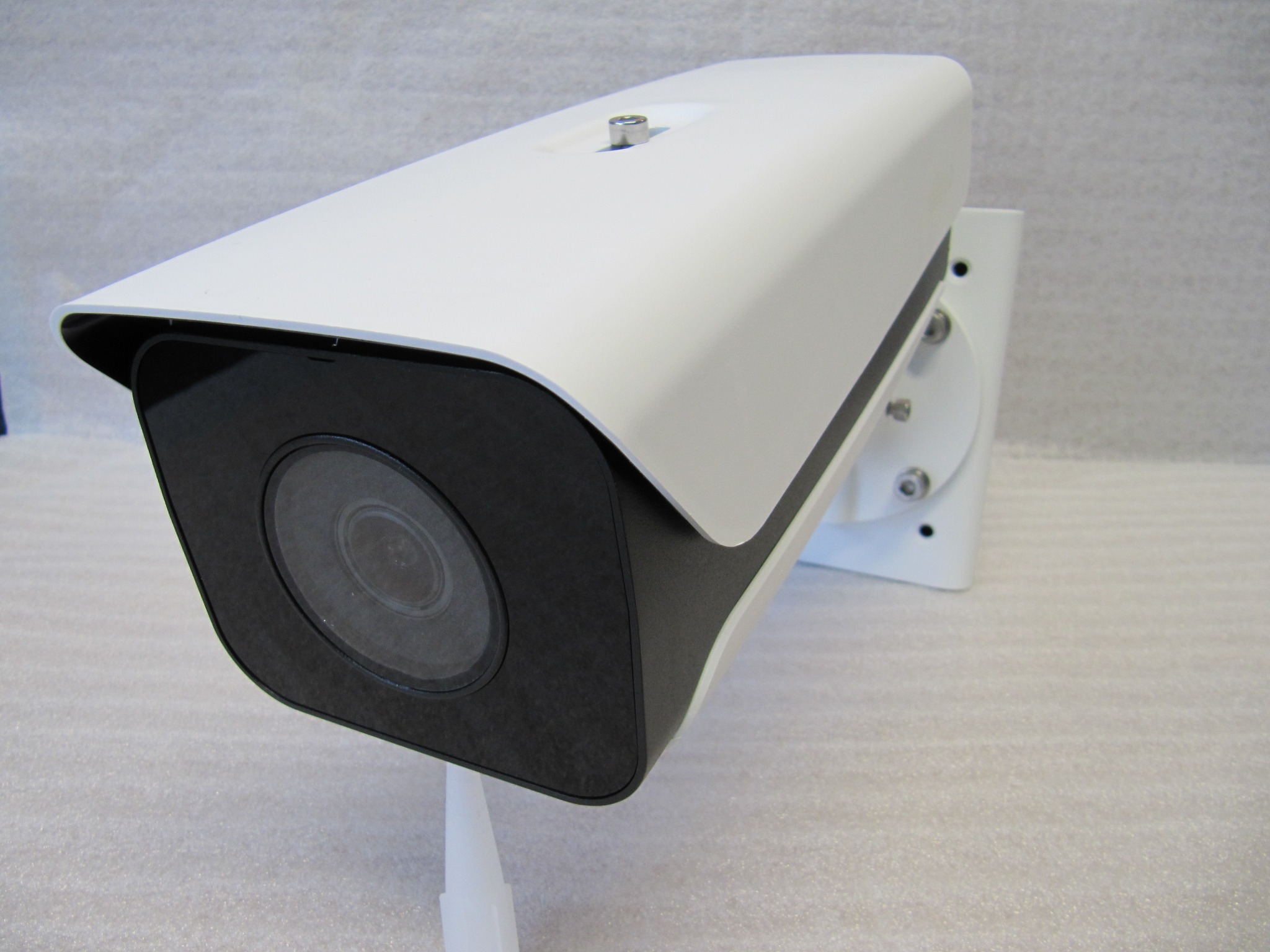

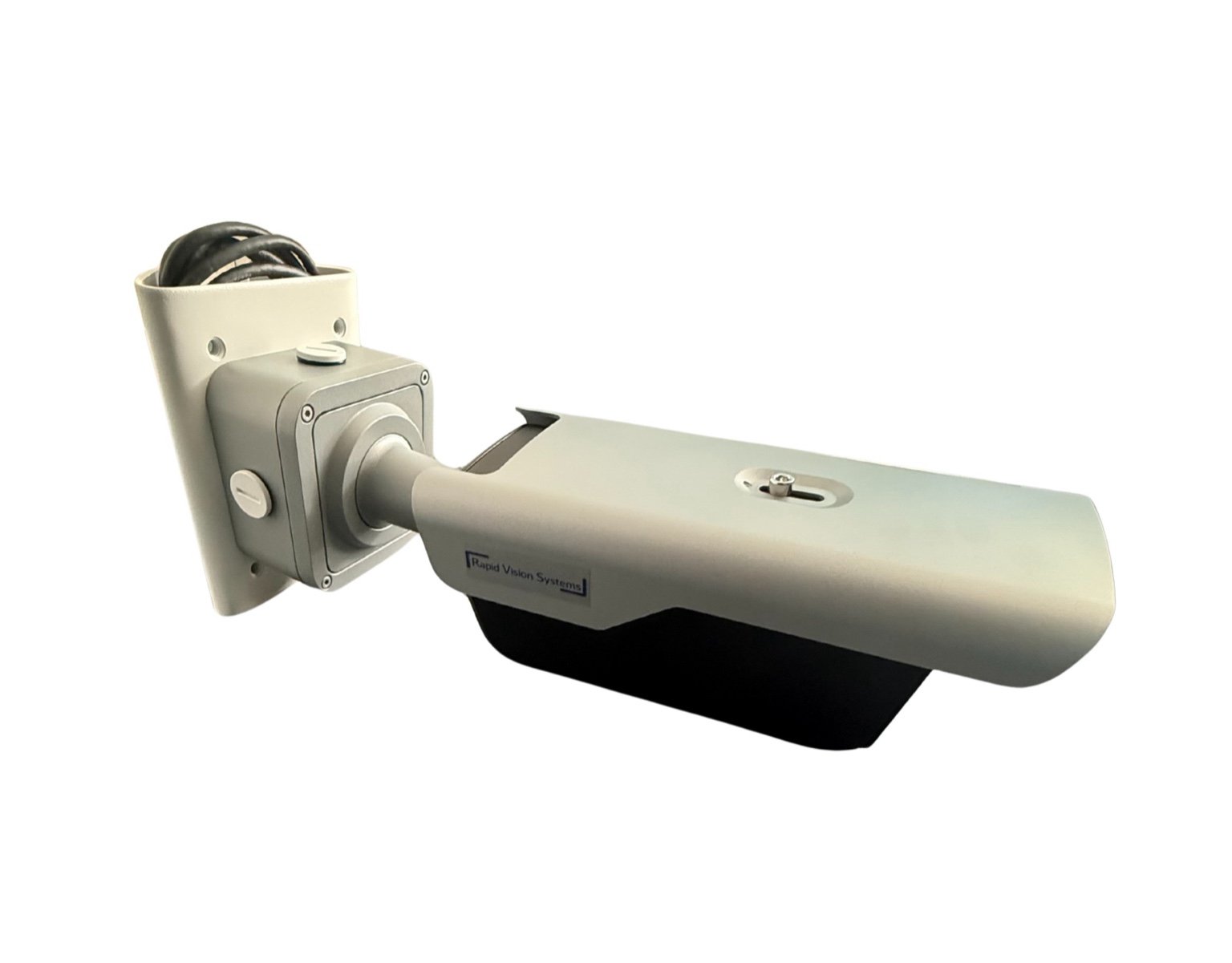

ANPR camera module integrated with redeployable CCTV for RDC

ANPR Camera Module

View specifications

Illuminator: 6× IR, brightness adjustable
Image Sensor: 1/2.8" CMOS
Image Resolution: 1920 × 1080
Video Resolution: 1080P/720P main; 720P/D1/CIF sub
Frame Rates: PAL 25fps; NTSC 30fps
Bit Rate: H.264/H.265 32K–32768K; MJPEG 512K–65536Kbps
Compression: H.264B/M/H, H.265, MJPEG
Noise Reduction: 3DNR; WDR 96 dB
Shutter: 1/50–1/10000; Auto iris W1.6–T3.3
Storage: TF 16–128GB
FOV (H/V/D): 108.1°–30.3° / 56.3°–17.1° / 130.9°–34.8°
Illumination Distance: 12 m; capture 3–6 m; lane 3–4 m
Min Illuminance: 0.002 Lux
Max Speed: 30 km/h
Intelligence: Vehicle capture ≥99%; recognition ≥95%
